鑽孔攻牙機 930A

930A

鑽孔攻牙機
(可在運轉中進行變速)

930A

產品特色

  1. 正逆轉開關把手之特殊設計,使攻牙操作隨心所欲,可不定點退刀,百分之百的控制正逆轉,可專門 應付硬度高的鋼鐵。
  2. 鑽孔套筒、攻牙夾頭,都是快速接頭裝置,使換刀具筒時,快速又省力。
  3. 附有安全扭力夾具,攻牙時能控制扭力大小及深度,可防止攻牙刀扭斷。
  4. 本機械可在運轉中變換轉速,齒輪組絕對安全。
  5. 最適合加工一些機械配件及沖床用模具、其它模具及各種無通孔的工作物..等。

規格

型號930A
鑽孔能力1/4"~1-1/4"
6~32mm
攻牙能力3/8"~1-1/8"
10~30mm
電源220V
三相
馬力2
轉速756 456
303 186
127 51
進刀行程100mm
機體升降行程150mm
主軸心至底座距離1000mm
主軸心至工作盤距離710mm
立柱外徑102mm
工作盤圓徑420mm
底座尺寸600x360
工作臺行程560mm
高度1560mm
扭力夾具標準附件7
鑽孔套筒標準附件3
附件重量8kgs
機台重量167kgs
* 以上之規格與形體可加以進行變更而無須事先通知
* 三相電壓 380V、415V、440V 可配合顧客需要製造

選購配件

點圖放大
型號尺寸重量

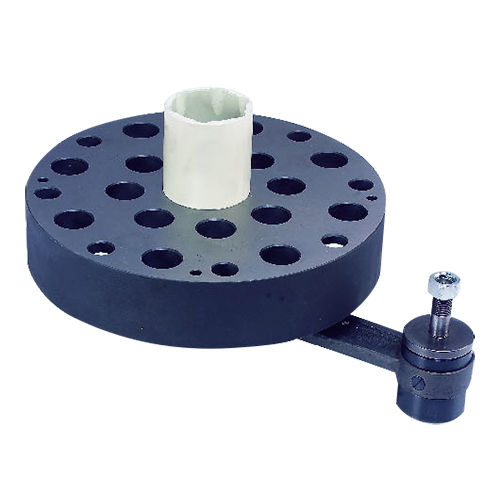

旋轉刀架組
DT-300400x300x215 mm12kgs


型號電源 (單相)尺寸重量

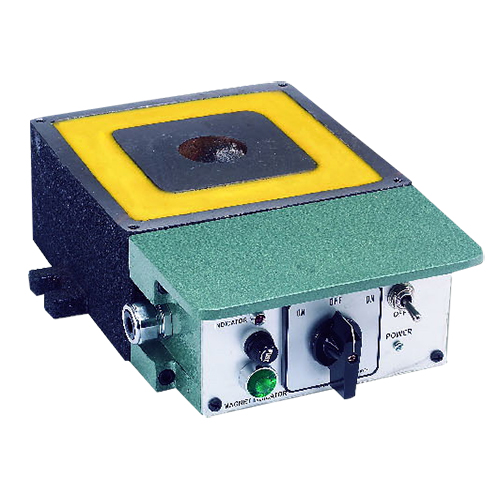

鑽孔機 / 攻牙機專用電磁吸盤
TC-32220V300x200x90 mm23.5kgs
* 此電磁吸盤有脫磁裝置。
